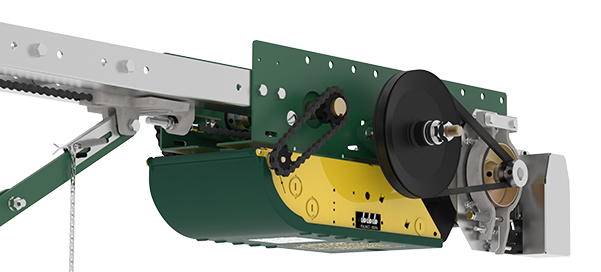

Manaras - OTBH-A.05 Premium Heavy-Duty Commercial Trolley Apartment Operator
- In stock, ready to ship
- Inventory on the way
PLEASE CONTACT FOR PRICING
APPLICATIONS
The OTBH-A.05 is a low headroom apartment type garage door operator designed for use on industrial standard lift sectional doors with high cycling daily frequency
requirements.
The operator incorporates a drum-shoe type solenoid brake and a low vibration
braking system, which provides additional positional stability and noise reduction.
The operator is available with the new Electronic Control Board (BOARD 070) with or without the option of electrical control for MONITORED external entrapment protection devices (UL325-2010 compliant).
STANDARD FEATURES
Motor:
60Hz high starting torque, continuous-duty, single phase capacitor start or 3 phase motor, open drip proof, protected against overload. Also available with 50Hz motor 220V 1 phase and 380V 3 phase motor, consult inside sales.
Reduction:
First step in reduction 4L/Ax section cogged V-belt drive, additional step by #41 chain and sprockets. Input shaft is 5/8", supported by cast iron flanged pillow block bearings. Output shaft is 1" with 1/4" keyway, supported by cast iron flanged pillow block bearings. Output shaft speed: 92 rpm for a door travel of 9"/s.
Clutch:
Friction type, positioned on input shaft, easily adjustable from outside.
Drive and Trolley Assembly:
#41 full roller chain drive. Dual, 12 gauge, pre-drilled galvanized tracks provided for
doors up to 12Ft in height standard. Additional track lengths are available (max. door height acceptable for the operator limit system is 30Ft). Track spacers 3/4" steel shaft. Trolley made of cast aluminum alloy with chain tension adjustment device.
Brake:
Electrically activated insulated drum-shoe type solenoid brake. Low vibration braking system provides positional stability and noise reduction.
Manual Operation:
Quick release disconnect arm for manual push-up operation.
Electrical Enclosure:
All electrical components are in a Nema 1 enclosure. Hinged electrical enclosure
cover.
Limit System:
Rotary-type oil-impregnated steel cams, commercial grade switches. Limit shaft is
supported by self-lubricating bronze bushings for increased precision. Remains in time when there is a manual operation or after the motor has been removed.
Accu-cam® Feature:
Precise and quick one-handed adjustment of the limits.
Corrosion Protection:
Frame and control enclosure protected by baked on, long lasting enamel finish. All
shafts protected by yellow chromate coating.
Mounting:
Ceiling-mounted with only 6.25" headroom clearance required below the tracks. For indoor use only.
Dimensions
Back Room: door height + 4'5" (1350 mm)
Head Room For Tracks: 5.625" (143 mm) above the highest point of door travel
For more details, please consult our Dimensions Drawing.
Shipping Weight:
Approx. 73 Lbs - 33 Kg + tracks.
Warranty:
2 Years.
